The Air Stream BT is a powerful and efficient scenting system, designed for seamless integration with the HVAC/AC system of both large commercial properties and extensive residential spaces. It effortlessly scents anything from hotel lobbies, casinos, and retail stores to multi-zone homes and high-rise residences. Utilizing cold-air diffusion (nebulizing) technology, the Air Stream BT releases tiny nano-particles into the air, providing a subtle, consistent aroma with no residue. This virtually silent diffuser covers an impressive 3,000 - 15,000 sq ft in a matter of seconds.

• Covers 3,000 - 15,000 sq ft
• Connects to existing HVAC (air conditioning system)
• Uses patented cold-air diffusion technology, a heat-free system to disperse essential oil molecules into the air
• Adjustable fragrance intensity and 24/7 timer
• Ultra-quiet operation and energy efficient
• Leaves no residue
• 2 x 4 liter drums of oil can last up to a year depending on settings
• Recommended bottle size: (4) half gallon drums

• Covers 3,000 - 15,000 sq ft
• Power: 110-240 volt power source
• Consumption: 1-3 ml. per hour
• Air Pump Dimensions: 12” H x 6” W x 6” L
• Oil Drum Dimensions: 12” H x 6” W
• Bottle Capacity: 2 x 4 liters drums (8-12 months)
• Refill: 8-12 months depending on usage
• Weight: 10 lbs without oil

• Fill up 2 aluminum 4 litre drums with 4 half gallon drums (2 per drum) of your favorite AromaTech scent..
• Screw the drums into the diffuser.

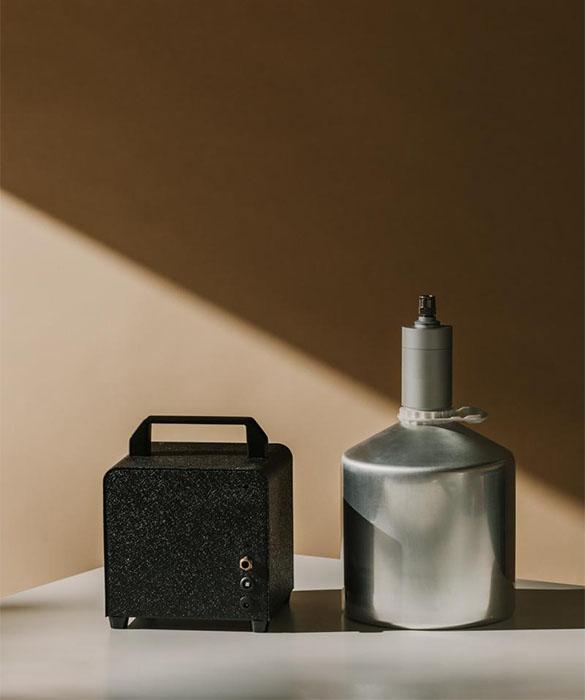

• Connect the air pump (black box) to the diffuser with the oil drum using supplied air tube.
• Drill two 1/2 inch holes inside your air duct and insert an air tube from the diffuser into the air duct. Make sure to keep the tube straight, avoid kinks and coils. Insert the tube into the duct after the coils, filters and only on the return side.
• Keep the air tube from diffuser to the air duct as short as possible, recommended length is 6 – 15 inches.
• Keep the air tube from the air pump (black box) to the diffuser max 10 feet.
• Plug the power adaptor into the scent machine and then into the wall outlet.
• Using the internal 24/7 digital timer set local time and hours of operation of the device.
• Use the + and – buttons to set the scent intensity.
• LCD display will indicate the scent level from 1 (low) through 20 (high).
• Recommended size to buy: (4) half gallon drums or (16) 500 ml. bottles

Remember, less is more! Start at the lowest setting and allow the scent to spread throughout your business before increasing the intensity.


PRODUCT MANUAL DOWNLOAD
